ABS-Like Resin 3D printed part — Industrial SLA general purpose material
Industrial SLA
General Purpose

ABS-Like Resin

Tough, impact resistant. Good for large functional parts, enclosures, and assemblies.

Max build size1000 x 1000 x 600mm
Tolerances±0.2mm
Lead timeFrom 7 business days
Applications
ProtoProdXL
01

Material spec

The standard for large-format SLA. Functional enclosures and assemblies.

ToughImpact resistantLarge format
Strengths
Large format SLA (up to 1m)
Tough and impact resistant
Good for enclosures and assemblies
Limitations
Lower detail than desktop SLA
Higher cost at small sizes
Requires support structures
Colors
White
02

Performance profile

Flexible
Rigid
0.0030 GPa10.00 GPa
Textured
Smooth
60 Ra μm1 Ra μm
Low Detail
High Detail
500 μm25 μm
Brittle
Impact Resistant
12 J/m220 J/m
Low Temp
Heat Resistant
41 °C238 °C
Soft
Hard
2890
Small Build
Large Build
145 mm1200 mm
03

Applications

ABS-Like Resin is available on our and and and and services. Typical jobs:

Presentation Models

Client-ready visual prototypes.

Design Verification

Snap-fit and assembly validation.

Casting Patterns

Investment casting patterns in Castable resin.

Medical Models

Anatomical models for surgical planning.

Bridge Manufacturing

Keep shipping while your injection mold is being cut.

Low Volume Manufacturing

Production runs below the injection molding crossover.

Production Parts

End-use nylon parts without mold tooling.

Replacement Parts

On-demand spares for legacy products.

Hardware Development

Iterate on enclosures, brackets, and assemblies without waiting for tooling.

Product Design Validation

Test form, fit, and function with production-grade materials before committing.

Investor Samples

Presentation-quality parts that look and feel like the final product.

Pre-Production Testing

Validate tolerances, material behavior, and assembly flow at low volume.

Jigs and Fixtures

Custom tooling for your production line — printed and delivered in days.

End-Use Production Parts

Parts that go directly into products your customers buy and use.

Supply Chain Supplementation

Fill gaps in your supply chain without retooling or long lead times.

Bridge Manufacturing

Keep shipping while injection mold tooling is still being cut.

Low-Volume Serial Production

Hundreds to thousands of identical parts — no MOQ from a mold shop.

Replacement Parts Programs

On-demand spares for legacy products without warehousing inventory.

Architectural Models

Site models, facade studies, and presentation pieces at true scale.

Trade Show Builds

Oversized displays and product replicas built to withstand transport and handling.

Industrial Housings and Enclosures

Full-size prototypes of panels, covers, and housings before committing to sheet metal.

Tooling and Molds

Large-format mold masters and lay-up tools printed faster than machined.

Props and Set Pieces

Camera-ready props for film, TV, and commercial production on tight timelines.

Wind Tunnel Models

Dimensionally accurate aerodynamic test models at scale.

04

Design guidelines

Guidelines

Recommended parameters when designing parts for ABS-Like Resin on Industrial SLA.

Wall thickness
1.0mmMinimum recommended wall thickness
Support & overhangs
45°
AlwaysSupport requirements and max overhang angle
Holes
Ø 0.5 mmMinimum hole diameter
Tolerance
±
±0.2mmExpected dimensional accuracy
Minimum features
0.5 mmSmallest printable feature
Clearance
0.125 mmRecommended clearance between parts
05

Post-processing

Standard finishing included with every ABS-Like Resin order on Industrial SLA.

Included (standard)

Support removal— Heavier supports cut with flush cutters and contact surfaces sanded smooth.
IPA washing— Solvent baths to remove uncured resin. Extended wash times for large parts.
UV post-curing— Large-format UV curing chamber. Longer cycles for thick-walled parts.
Sanding— Support marks sanded flush. Presentation models get full surface sanding.

Optional (quoted separately)

+
Wet sanding— Progressive wet sanding up to 2000 grit for near-polished surfaces.
+
Polishing— Multi-stage polishing for optical clarity on Optical Clear parts.
+
Painting / priming— Filler primer and paint for architectural models and display pieces.
+
Clear coating— UV-resistant clear coat for Optical Clear parts or painted surfaces.
+
Assembly— Multi-piece builds bonded with structural adhesive. Seams filled and sanded.

View full post-processing details →

06

Shipping & delivery

Every Industrial SLA order ships from our production facility in Brooklyn, NY. Lead time starts at From 7 business days. Enter your zip code to see exactly when parts will arrive at your door.

Local Pickup

Same day, free. Brooklyn facility, Mon\u2013Fri 10am\u20135:30pm ET.

Courier

Same day across all five boroughs and northern NJ.

Nationwide Shipping

UPS Ground, 2nd Day Air, and Next Day Air. Tracked and insured.

All shipping options →

Mechanical properties

Tensile Modulus2.7 GPa
Tensile Strength (UTS)58 MPa
Elongation at Break16%
Flexural Modulus2.73 GPa
Flexural Strength72 MPa
Impact Strength (Izod)64 J/m
HardnessShore D 79
Density1.15 g/cm³

Physical & thermal

Heat Deflection (HDT)66°C @ 0.45 MPa
Surface Roughness5 Ra μm
Min Layer Height50 μm
Light TransmissionOpaque
Max Build Dimension1000 mm
06

Compare ABS-Like Resin with others

Select up to 3 more materials to compare

Tap materials above to compare with ABS-Like Resin

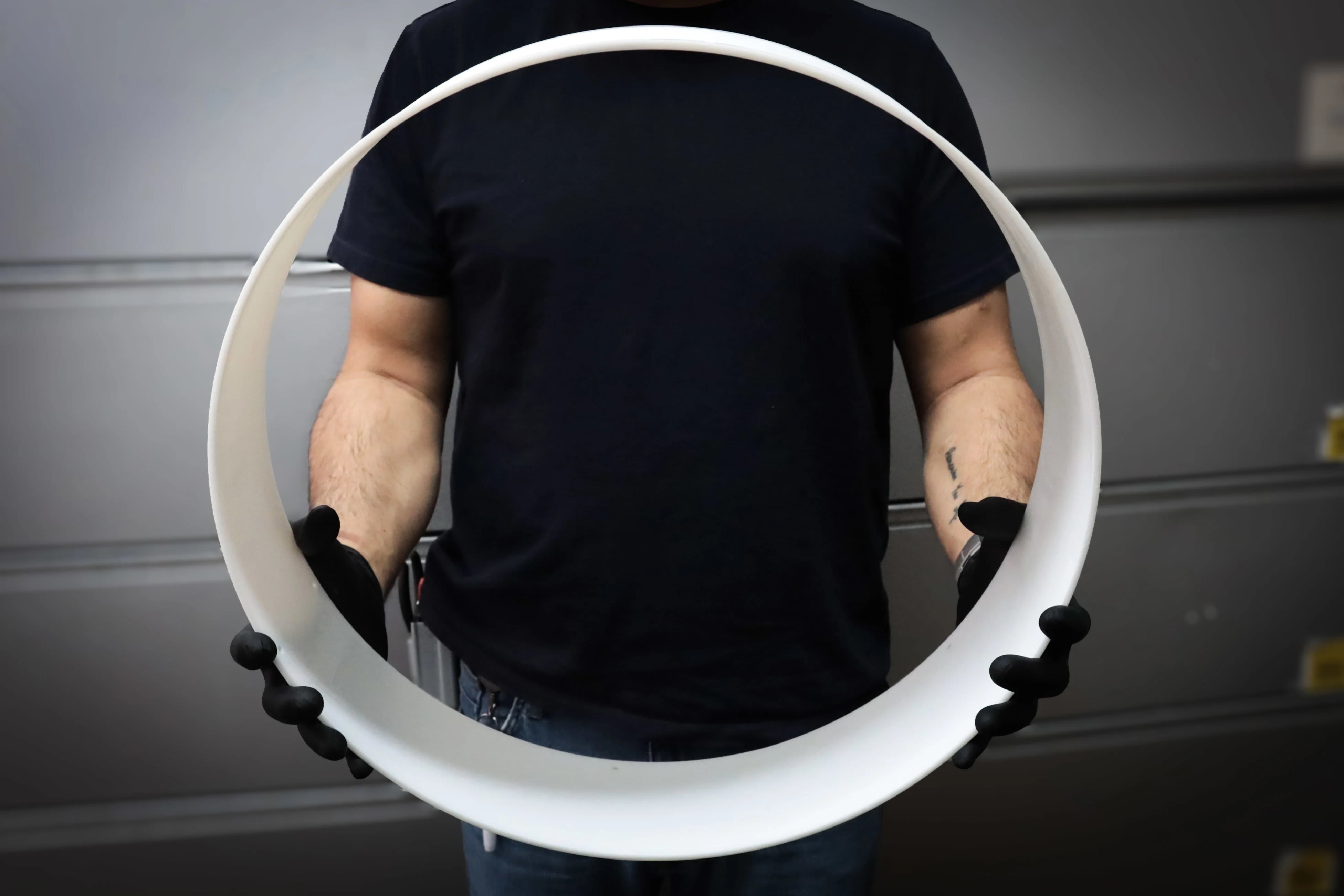

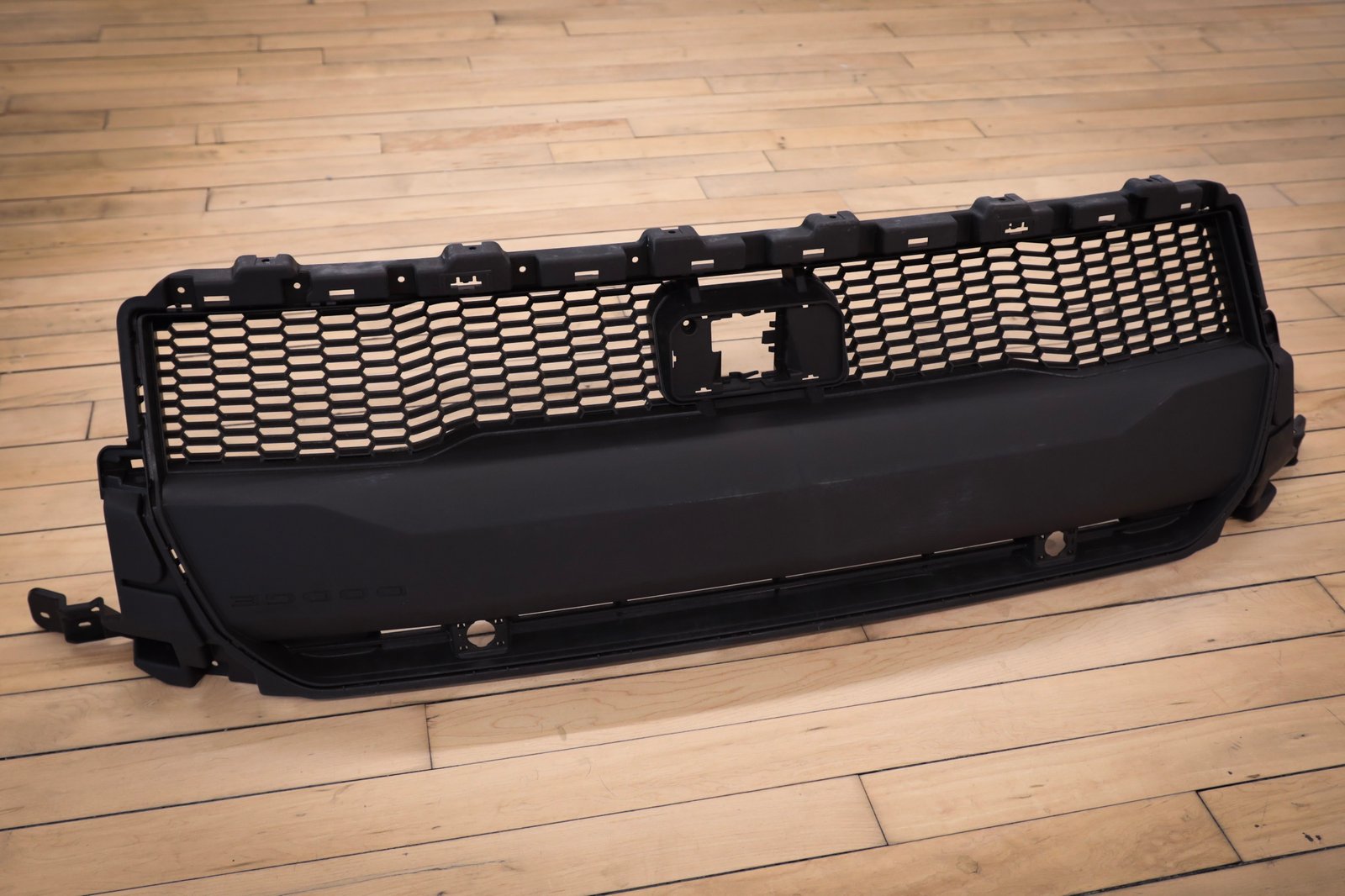

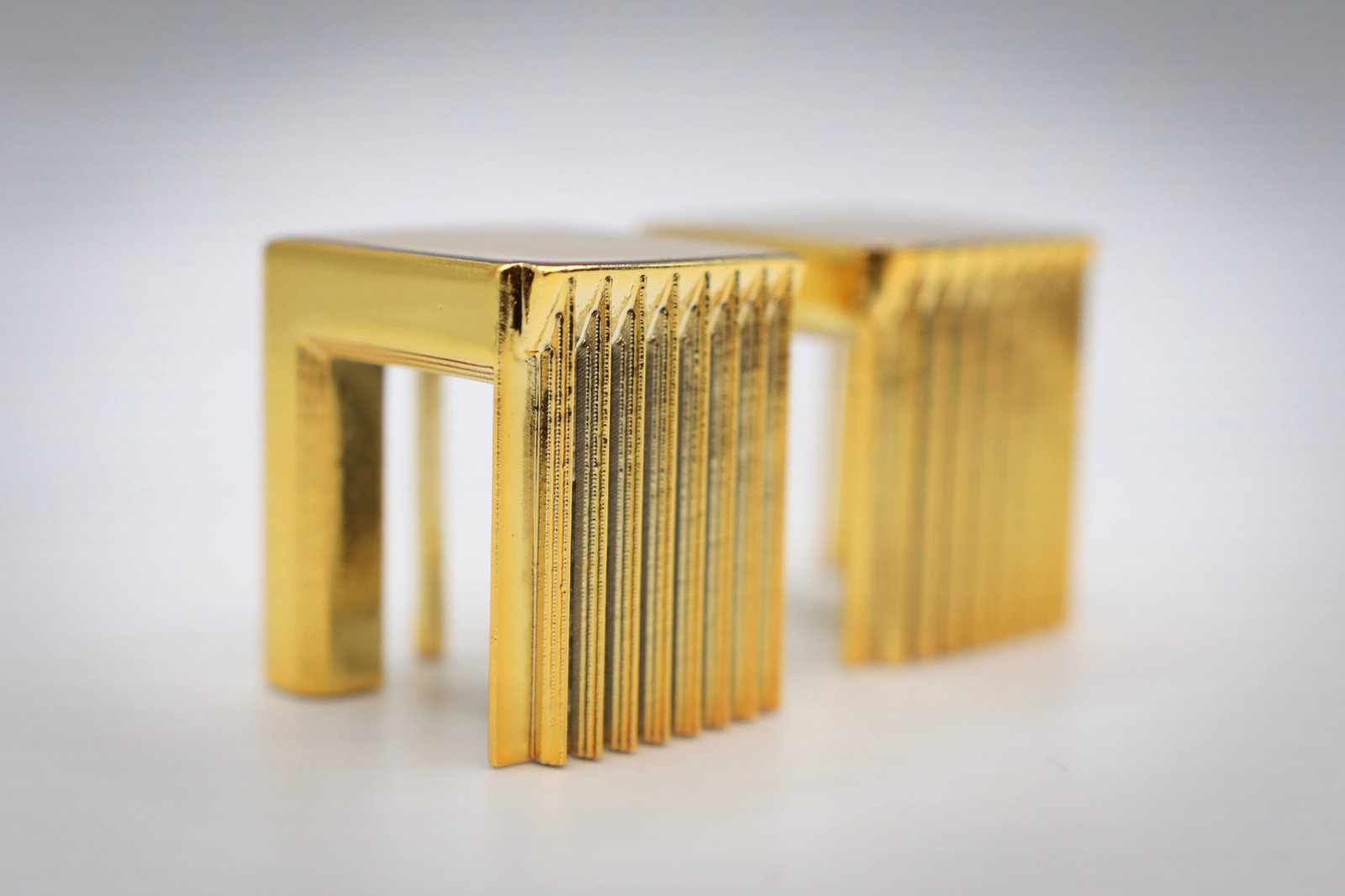

ABS-Like Resin 3D printed part example 1 — Industrial SLA technology

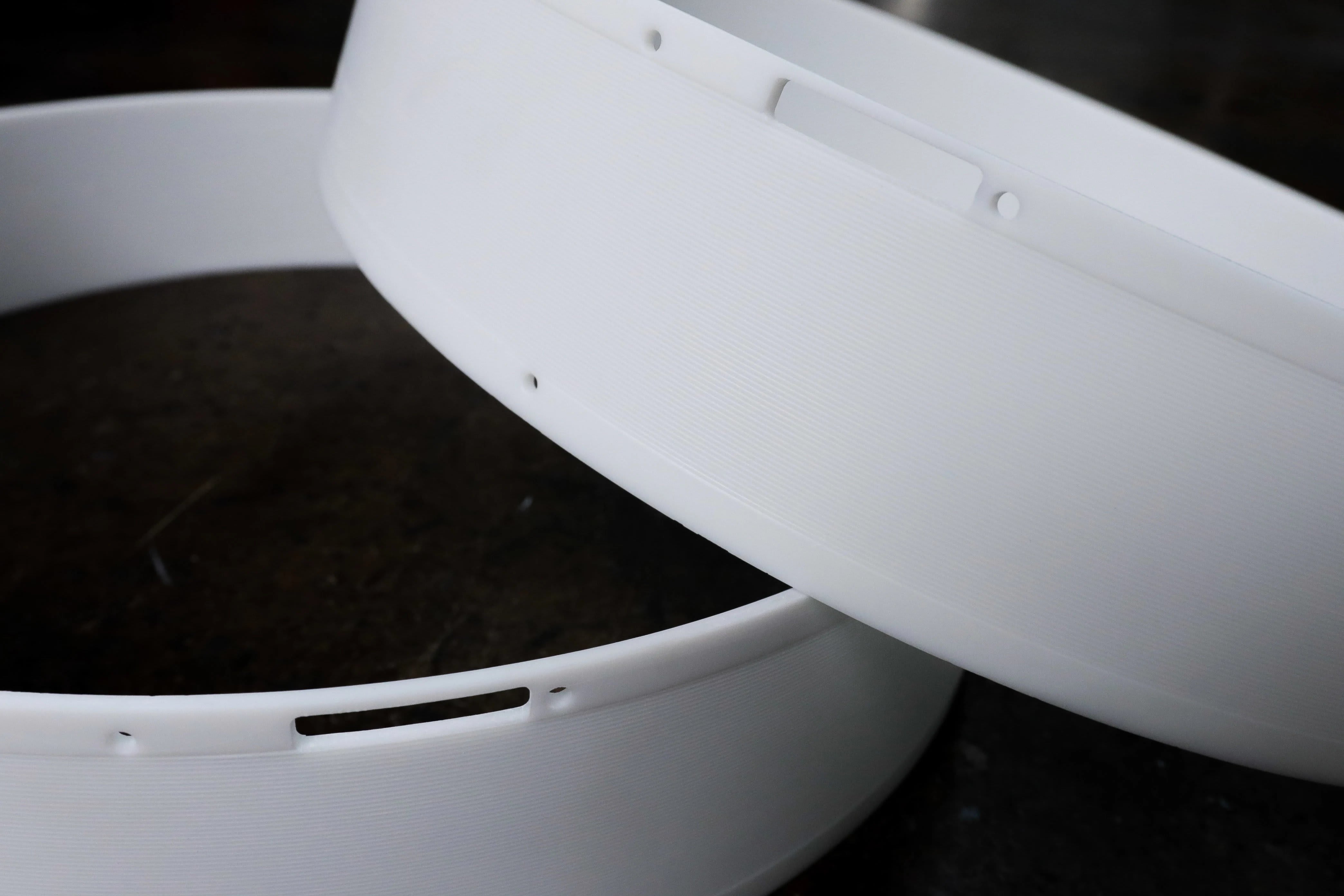

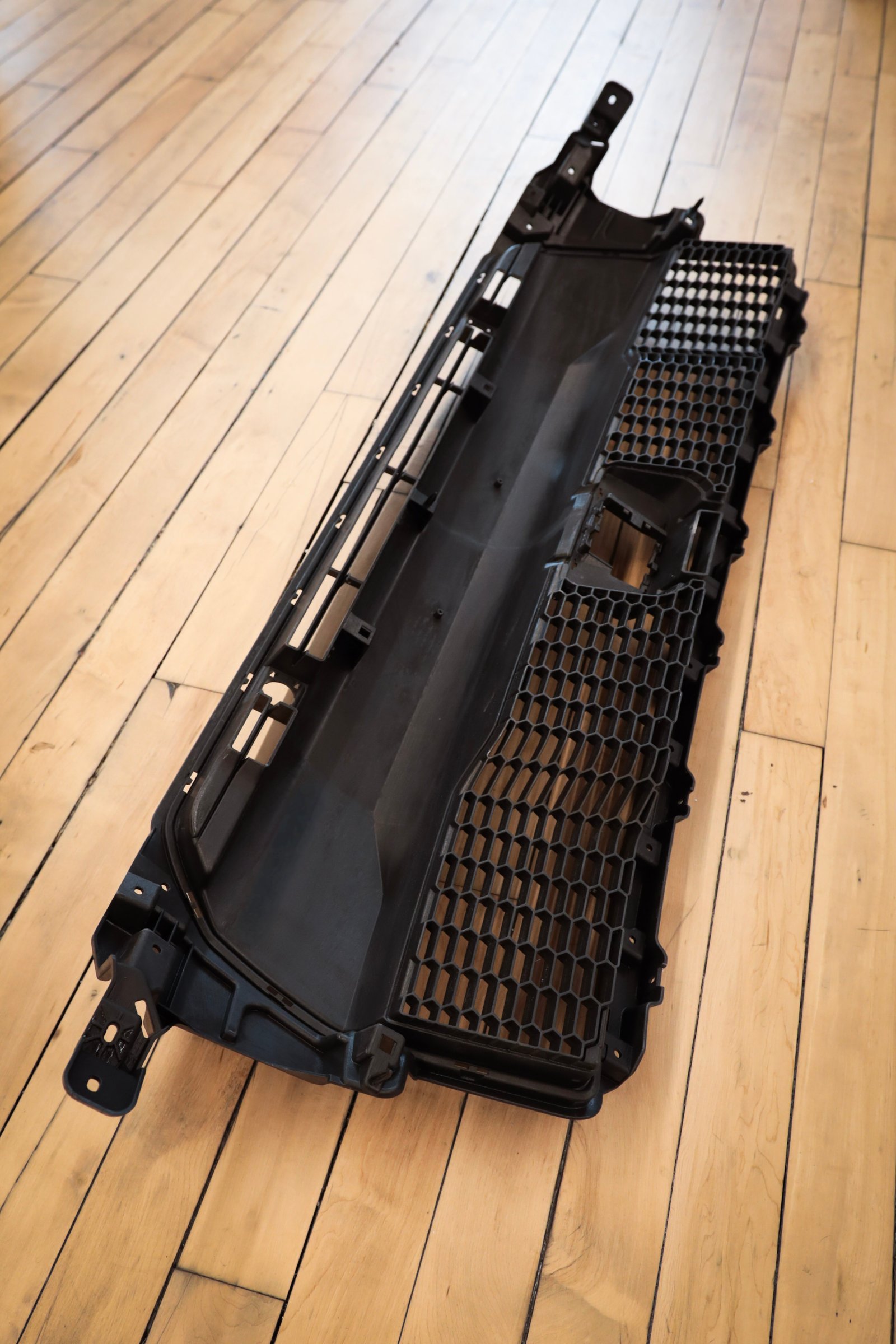

ABS-Like Resin 3D printed part example 2 — Industrial SLA technology

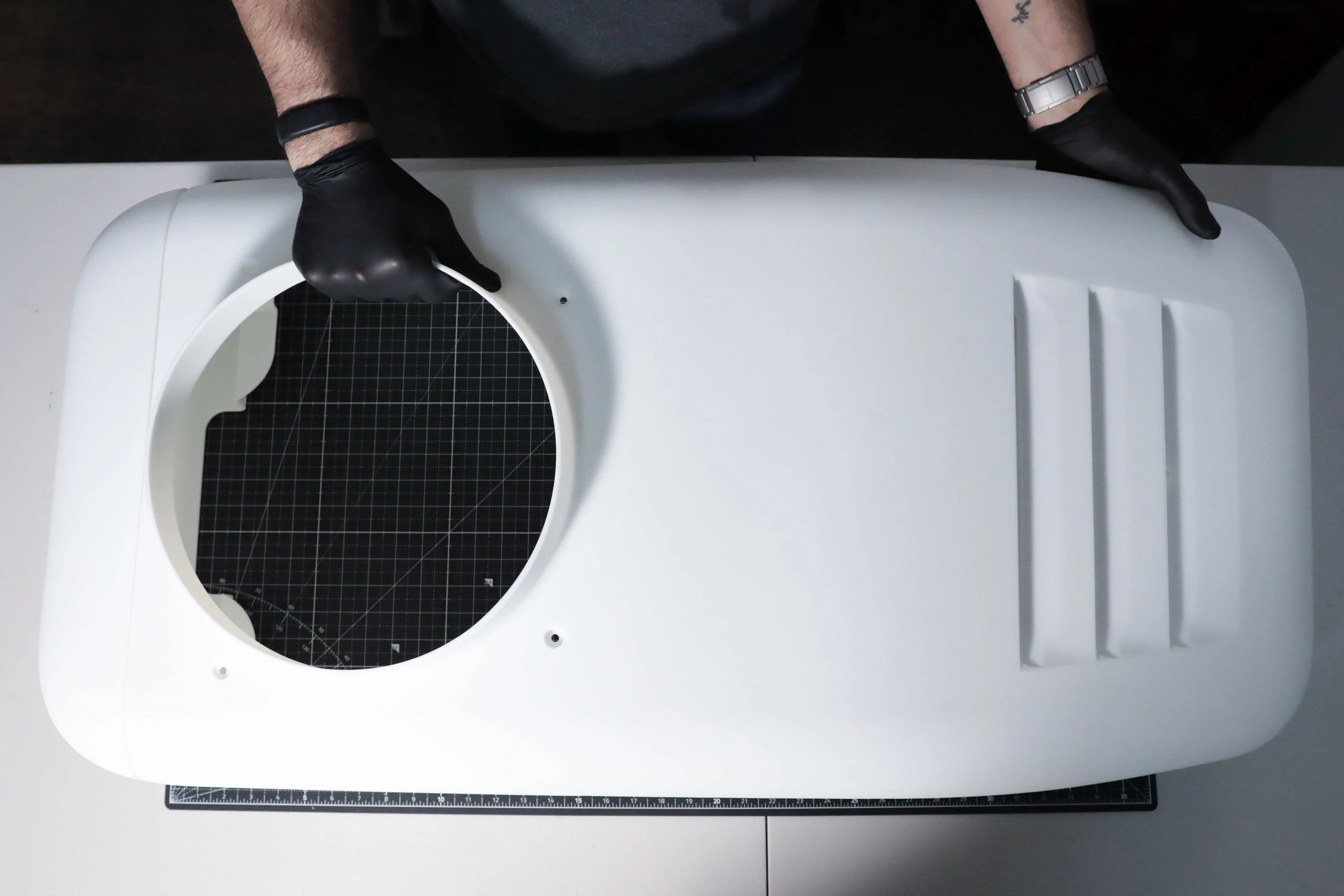

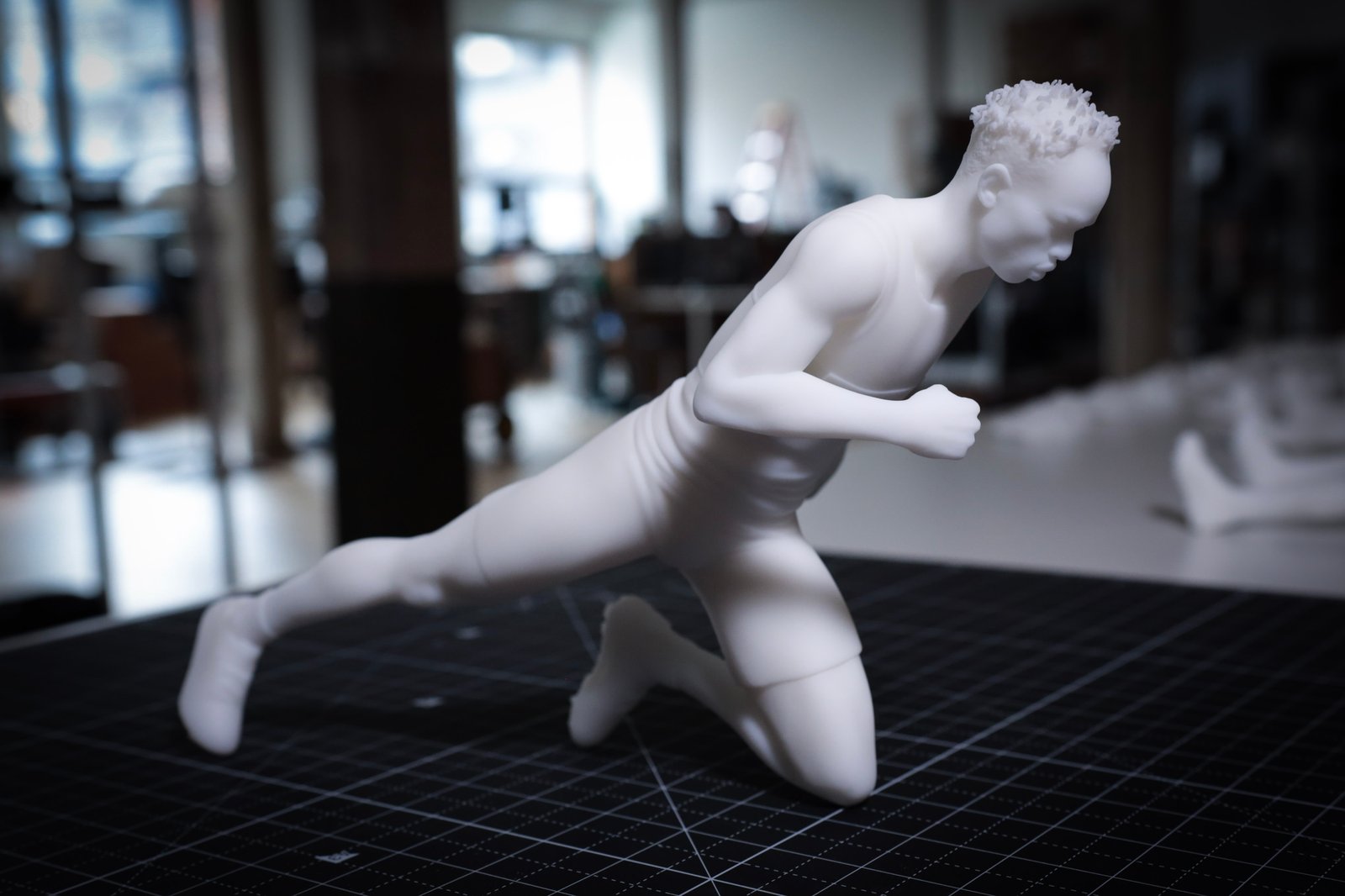

ABS-Like Resin 3D printed part example 3 — Industrial SLA technology

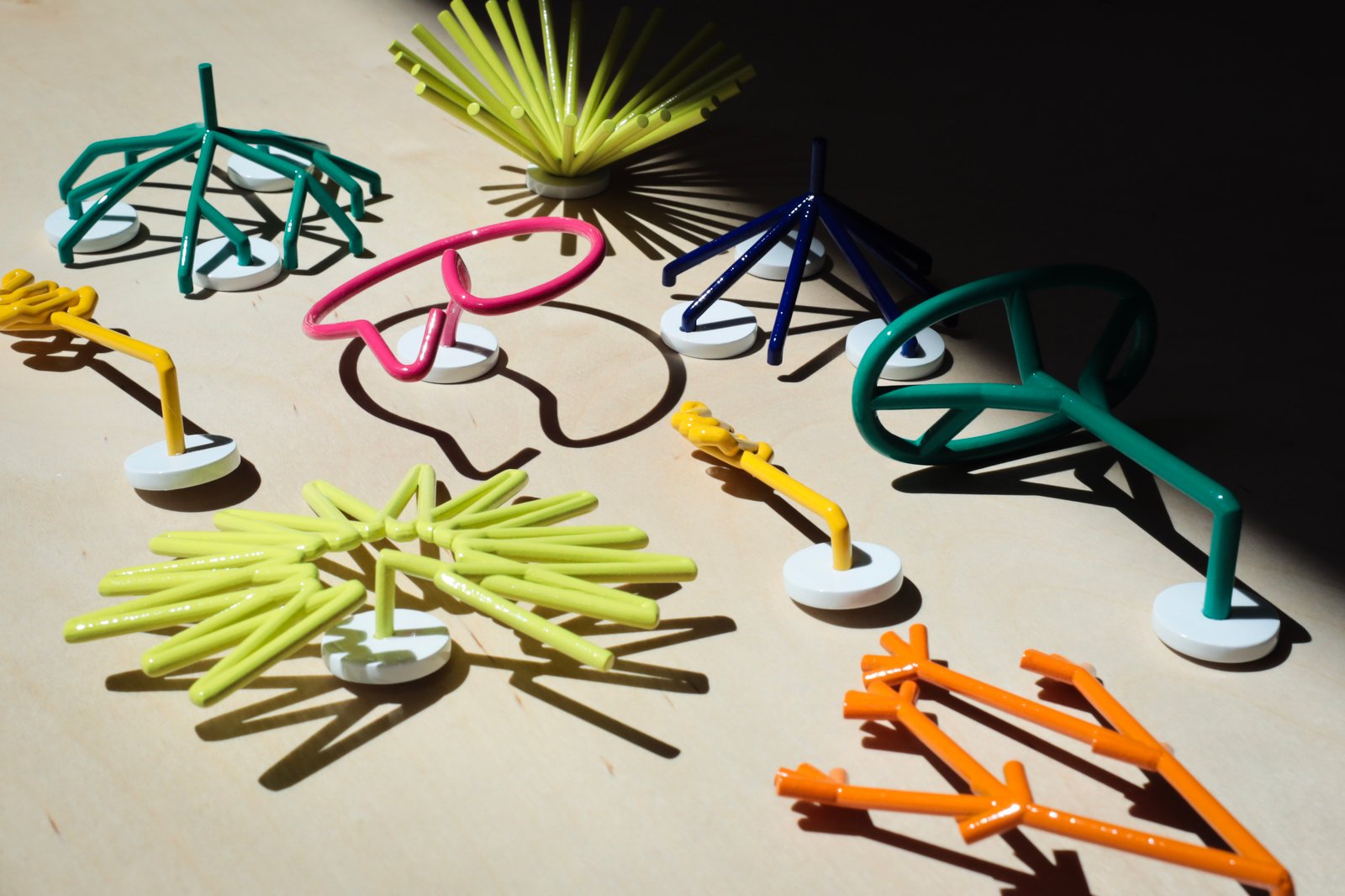

ABS-Like Resin 3D printed part example 4 — Industrial SLA technology

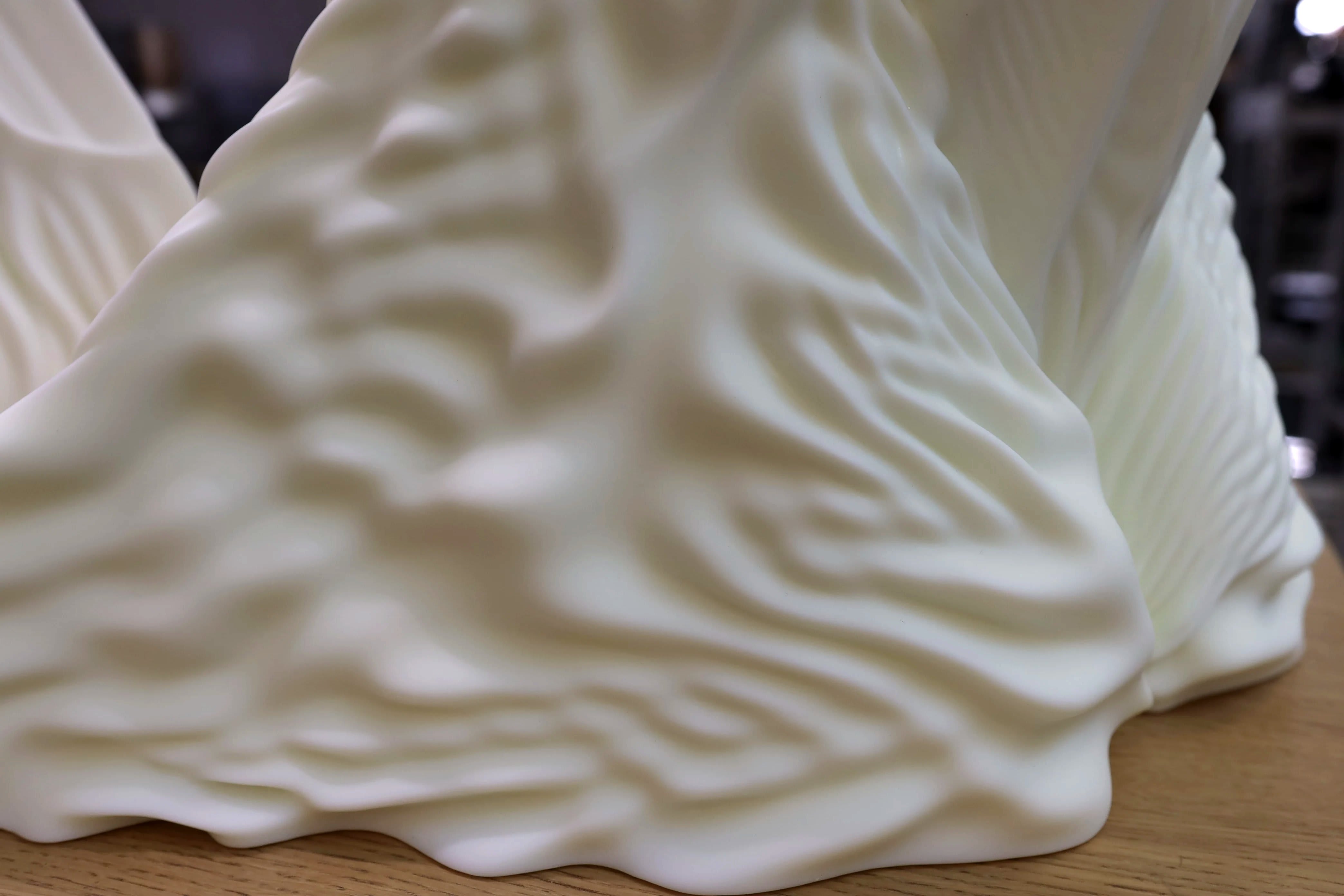

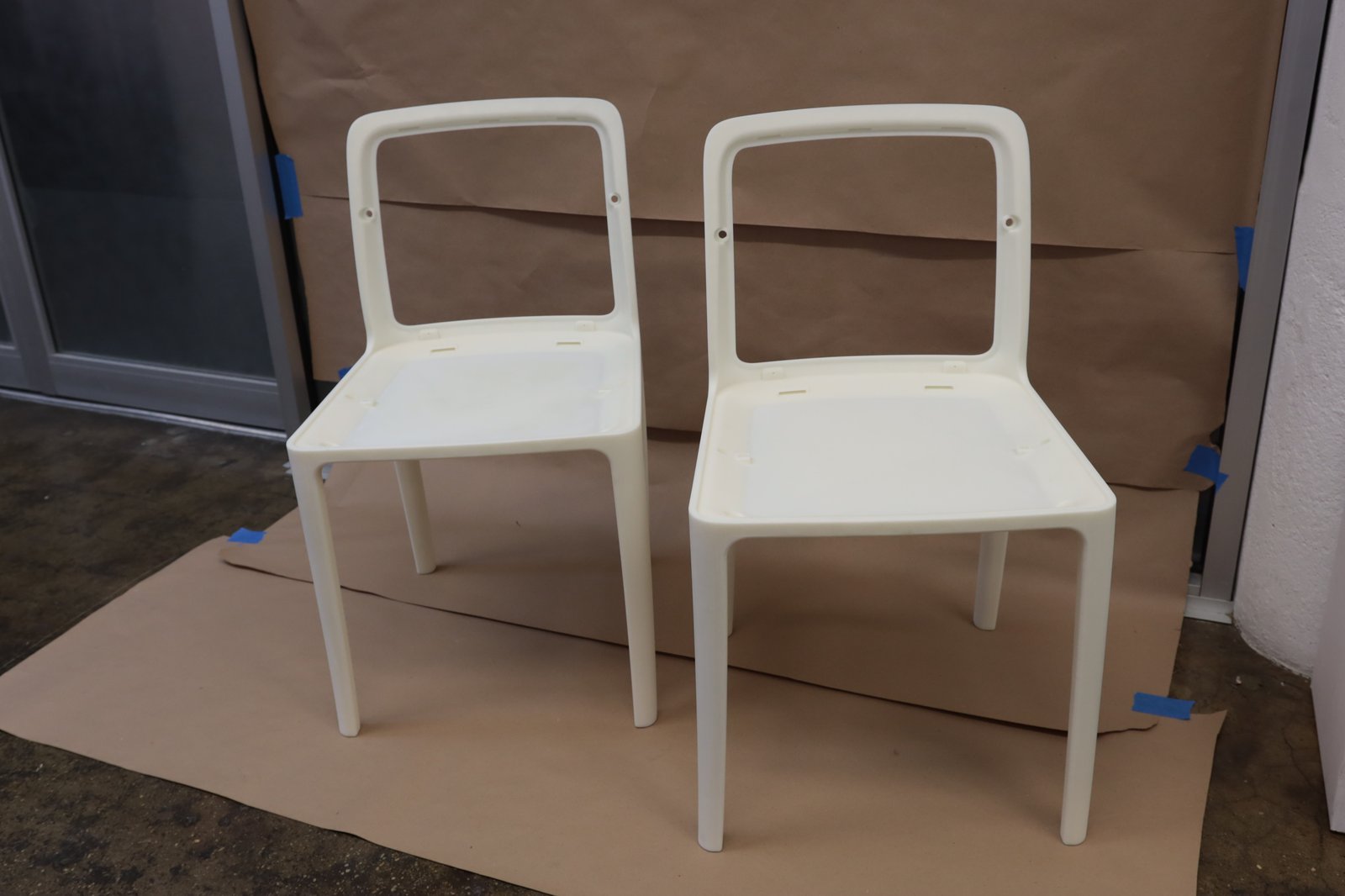

ABS-Like Resin 3D printed part example 5 — Industrial SLA technology

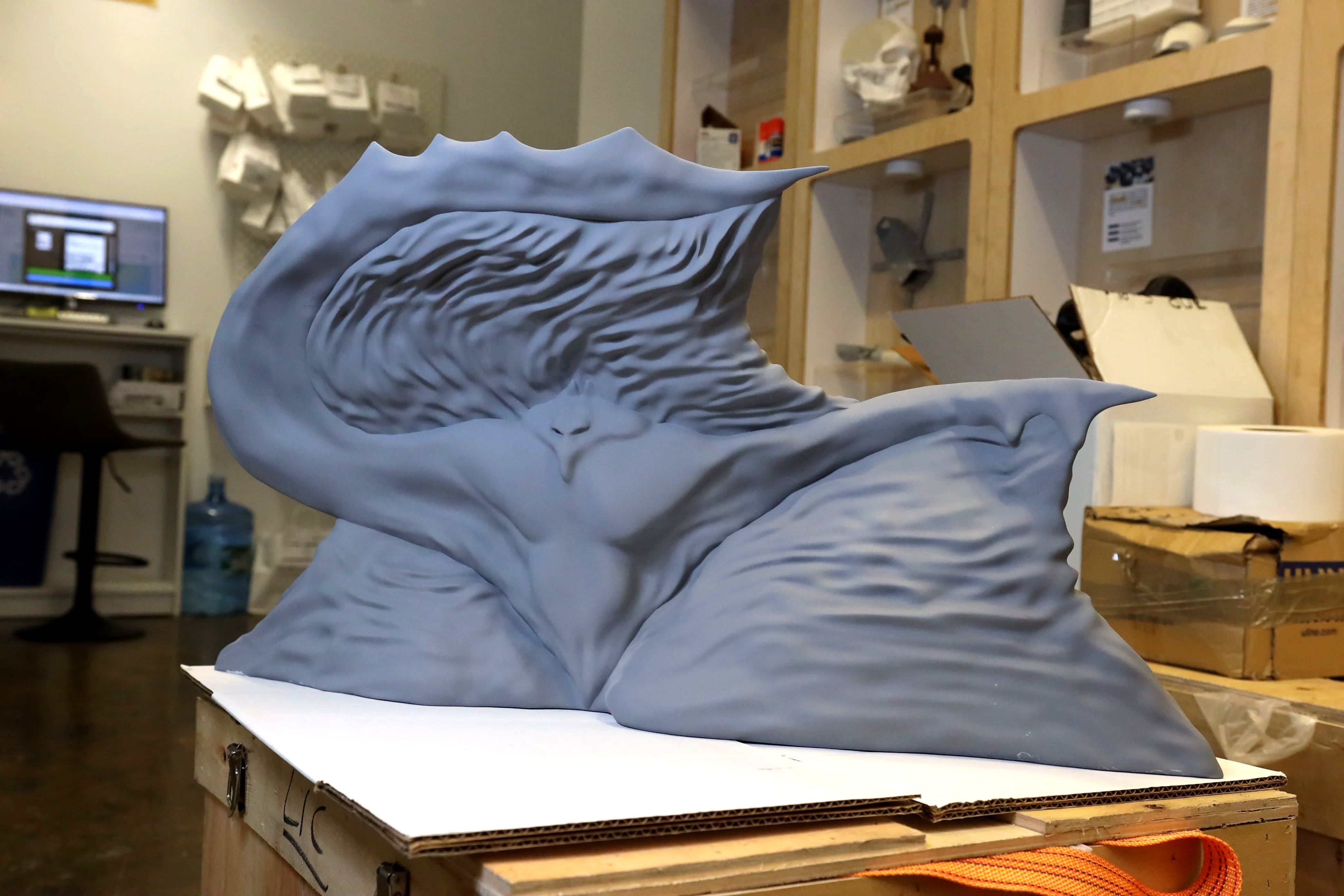

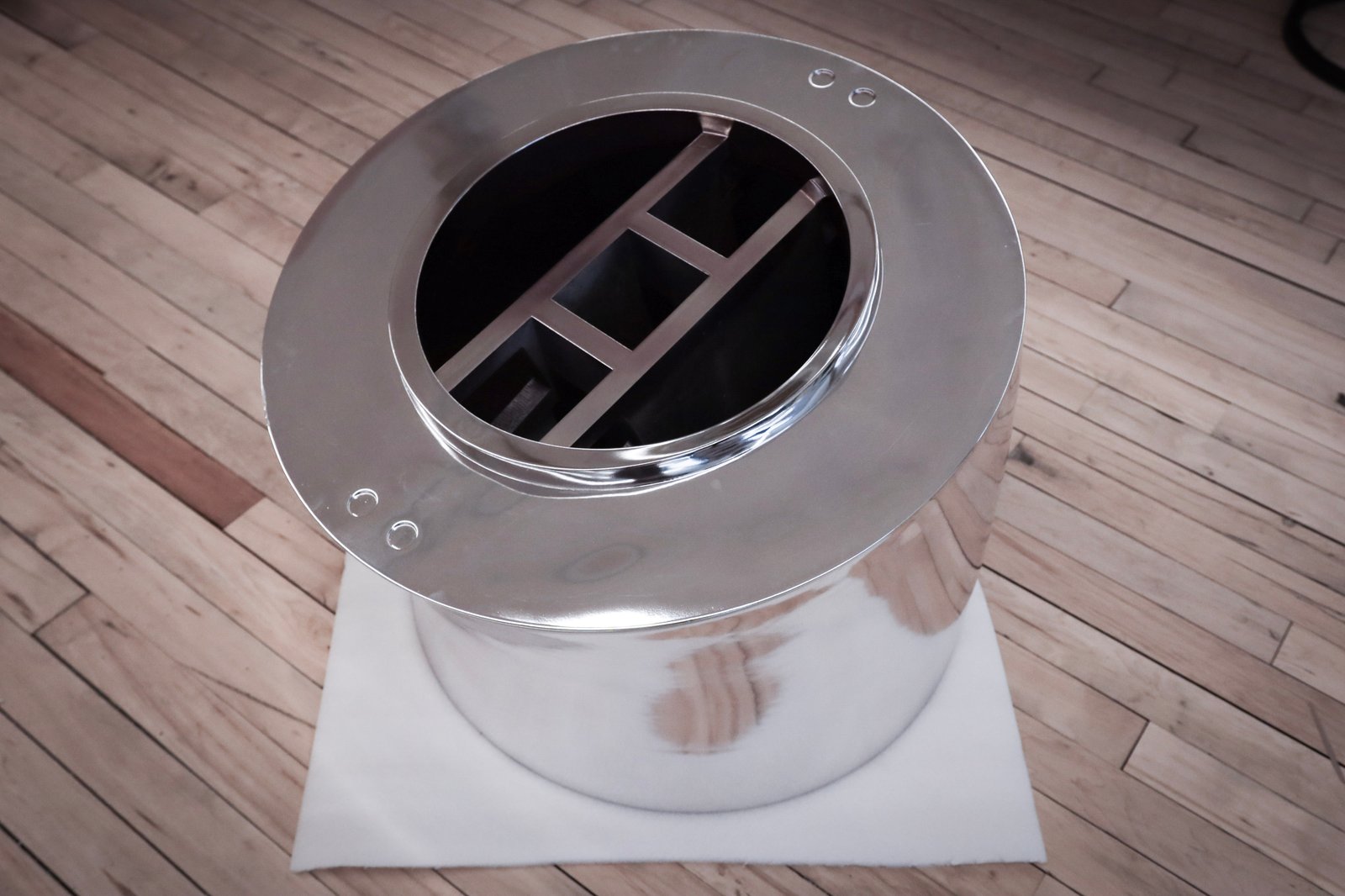

ABS-Like Resin 3D printed part example 6 — Industrial SLA technology
