Standard Resin

Formlab’s Standard Resin is great for prototyping parts that need smooth finishes. If you’re looking for parts that can be painted and displayed visually, standard resin is a great option for capturing fine, intricate details. It’s also great for sanding and post-processing, essential for parts that need to be finished after printing.

PROS OF

Standard Resin

When it is a perfect material choice
Great for visually aesthetic pieces like figurines and characters
Best at capturing small and fine details
Prototyping with nicer surface finishes
Great for painting/finishing
Ability to capture intricate features
Quick printing turnaround times, we can print in as quick as 2 business days!

CONS OF

Standard Resin

When to seek other material options
Supports are necessary for printing which can affect the visual quality of the part
Requires extra post-processing to sand off nubs after removing supports
Less cost-effective than FDM
Low to none chemical resistance
Custom colors are available but have a large added cost due to high cost for sourcing materials
Custom colors only available for bulk orders

PRINT SETTINGS

You need 3D printing and you need it FAST! That’s why we offer some of the quickest turnaround times in the nation.

MATERIAL PROPERTIES

A guide to material's advanced properties.
Dimensional Accuracy
70 Microns
Ultimate Tensile Strength (MPa)
65.0
Is UV Resistant
Is Chemical Resistant
Elongation at Break
6%
Heat Deflection Temp @45 mpa
42.70
Shore a hardness
Notched IZOD
25 J/m
Tensile Modulus (GPa)
2.8
Flexural Modulus (GPa)
1.30

simplified properties

HARDNESS
BRITTLENESS
FLEXIBILITY
SURFACE QUALITY
IMPACT RESISTANCE
Download Technical Datasheet

STANDARD COLORS

These are the available colors.

BLACK

WHITE

GRAY

YELLOW

CLEAR

AS MATERIAL

ANY COLOR
CURRENTLY AVAILABLE

In need of a custom color? Contact our service team!

Talk to Us

QUALITY FOR

Standard Resin

This number of microns determines how thick each layer is. The smaller the micron count, the thinner the layer, this results in higher surface detail, better surface finishes and less stepping!
HIGHEST QUALITY
High Detail Quality
25
Microns
Detailed Quality
50
Microns
Standard Quality
100
Microns
Draft Quality
Microns
LOWEST QUALITY

build plate size for

Standard Resin

Below are the available build volumes.
If you need an XL volume, please visit our Extra Large 3D Printing page.

FDM Build Volume

250 x 210 x 210 mm
9.84 x 8.3 x 8.3 in

SLA Build Volume

145 x 145 x 175 mm
5.7 x 5.7 x 6.9 in

SLA XL Build Volume

335 x 200 x 300 mm
13.2 x 7.9 x 11.8 in

MJF Build Volume

380 x 284 x 380 mm
15 x 11.2 x 15 in

VCJ Build Volume

500 x 250 x 200 mm
19.6 x 9.84 x 7.87 in
Download STL Files of our Build Volumes

LEAD TIMEs FOR

Standard Resin

After you place an order, we are committed to efficiency and meeting deadlines.
NEXT-DAY
1 business day

Example:
BEFORE 3:30pm
Orders placed: Friday
Get dispatched: Monday

AFTER 3:30pm
Orders placed: Friday
Get dispatched: Tuesday

*No support structures removed in this option

RUSH
2 business days

Example:
Before 3:30pm
Orders placed: Monday
Get dispatched: Wednesday

AFTER 3:30pm
Orders placed: Monday
Get dispatched: Thursday

STANDARD
3 business days

Example:
Before 3:30pm
Orders placed: Saturday
Get dispatched: Thursday

AFTER 3:30pm
Orders placed: Saturday
Get dispatched: Friday

NO-RUSH
5 business days

Example:
Before 3:30pm
Orders placed: Tuesday
Get dispatched: Next Tuesday

AFTER 3:30pm
Orders placed: Tuesday
Get dispatched: Next Wednesday

EXTENDED
7 business days

Example:
Before 3:30pm
Orders placed: Friday
Get dispatched: Next Tuesday

AFTER 3:30pm
Orders placed: Friday
Get dispatched: Next Wednesday

Lead Time Calculator

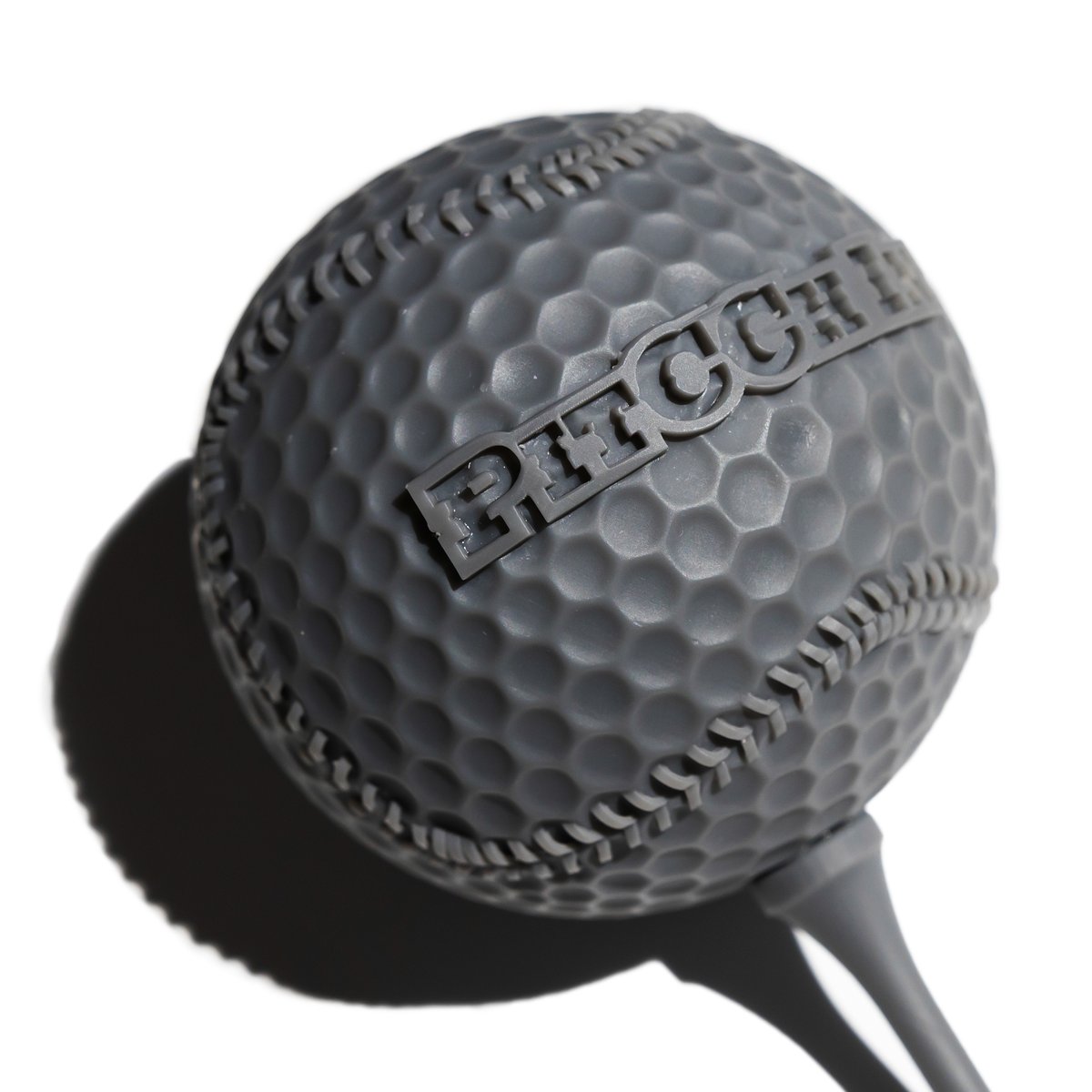

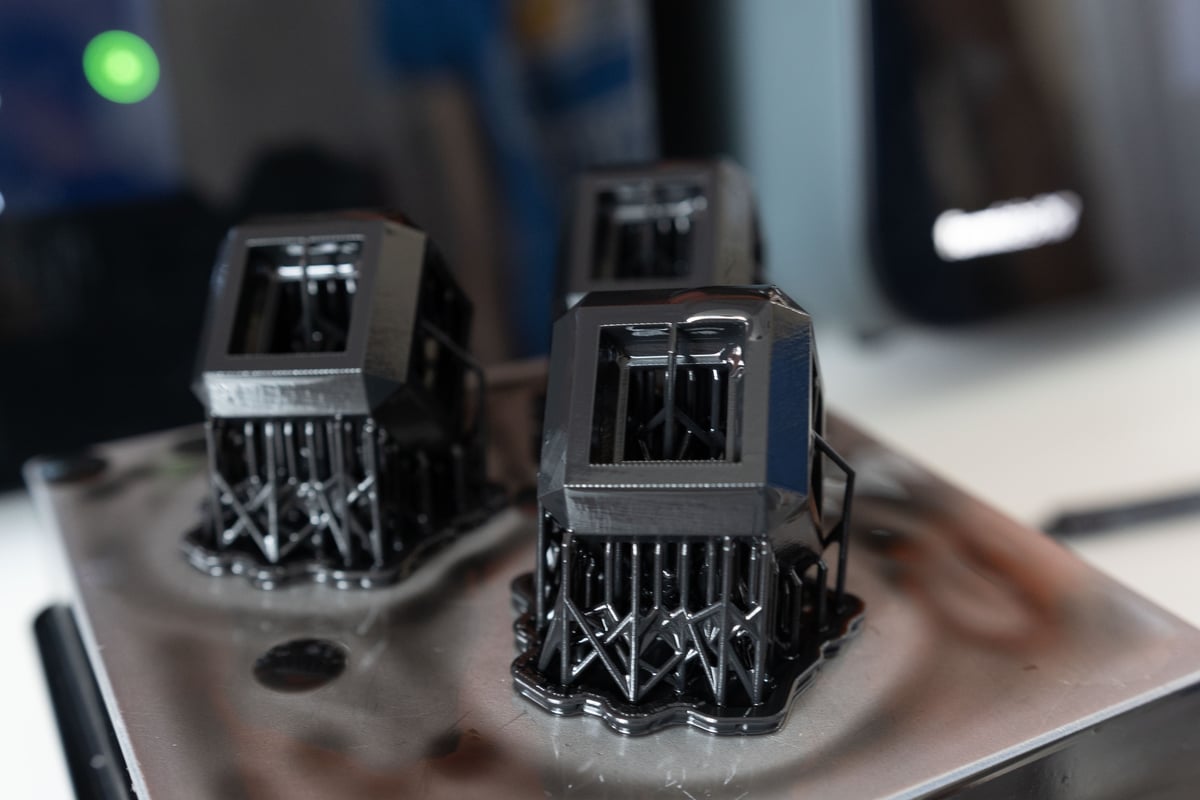

Examples of parts

castable wax resin 3d printed part sla
3d printed ssample of pla using fdm 3d printing technology
Assembly of a 3D print, PLA FDM
fdm pla bulk 3d printed part
3d printed part tough resin sla
tough resin sla 3d printed part
3d printed part tough resin sla
tough resin sla 3d printed part
tough resin sla 3d printed part

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

PLA
STANDARD RESIN
DRAFT RESIN

Ultimate Tensile Strength

38-60MPa
(dependent on orientation)

65MPa

36MPa

Elongation at Break

1.9 - 2.9%

6.2%

7%

Price

$

$$$

$$

Lead Times

1-5 business days

2-7 business days

2-7 business days

Build Volume Size

250 x 210 x 210mm

145 x 145 x 185mm

& 335 x 200 x 300mm

335 x 200 x 300mm

Color

Black, white, gray.
Custom color on request.

Gray, black, clear or white.
Custom color on request.

Light gray

Selling Point

✅ Basic prototyping

✅ High surface finish visuals

✅ Inexpensive high surface finish visuals

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

PLA
STANDARD RESIN
DRAFT RESIN

Ultimate Tensile Strength

38-60MPa
(dependent on orientation)

65MPa

36MPa

Elongation at Break

1.9 - 2.9%

6.2%

7%

Price

$

$$$

$$

Lead Times

1-5 business days

2-7 business days

2-7 business days

Build Volume Size

250 x 210 x 210mm

145 x 145 x 185mm

& 335 x 200 x 300mm

335 x 200 x 300mm

Color

Black, white, gray.
Custom color on request.

Gray, black, clear or white.
Custom color on request.

Light gray

Selling Point

✅ Basic prototyping

✅ High surface finish visuals

✅ Inexpensive high surface finish visuals

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

PLA
STANDARD RESIN
DRAFT RESIN

Ultimate Tensile Strength

38-60MPa
(dependent on orientation)

65MPa

36MPa

Elongation at Break

1.9 - 2.9%

6.2%

7%

Price

$

$$$

$$

Lead Times

1-5 business days

2-7 business days

2-7 business days

Build Volume Size

250 x 210 x 210mm

145 x 145 x 185mm

& 335 x 200 x 300mm

335 x 200 x 300mm

Color

Black, white, gray.
Custom color on request.

Gray, black, clear or white.
Custom color on request.

Light gray

Selling Point

✅ Basic prototyping

✅ High surface finish visuals

✅ Inexpensive high surface finish visuals

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

Castable Wax Resin
STANDARD RESIN
Grey Pro Resin

Ultimate Tensile Strength

11.6MPa

65MPa

61MPa

Elongation at Break

13%

6.2%

13%

Price

$$$

$

$$

Lead Times

2-7 business days

2-7 business days

2-7 business days

Build Volume Size

145 x 145 x 185mm

145 x 145 x 185mm

& 335 x 200 x 300mm

145 x 145 x 185mm

Color

As material, Purple

Gray, black, clear or white.
Custom color on request.

Translucent Grey

Jewelry Cheat Sheet

✅ Great for casting in metals

✅ High surface finish visuals

✅ Great for confirming visual prototypes

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

Soft Elastic
Flexible Resin
Elastic Resin

Shore Hardness

32A

80A

50A

Elongation at Break

200%

120%

160%

Price

$$$

$$

$$

Lead Times

7 business days

2-7 business days

2-7 business days

Build Volume Size

500 x 250 x 200mm

145 x 145 x 185mm

145 x 145 x 185mm

Color

Beige

Clear

Clear

Tear Strength

3.7kN/m

19.1kN/m

24kN/m

Ultimate Tensile Strength

0.92MPa

3.23MPa

8.9MPa

Skin Contact Compatibility

Makelab's Top Pick Winner

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

Soft Elastic
Flexible Resin
Elastic Resin

Shore Hardness

32A

80A

50A

Elongation at Break

200%

120%

160%

Price

$$$

$$

$$

Lead Times

7 business days

2-7 business days

2-7 business days

Build Volume Size

500 x 250 x 200mm

145 x 145 x 185mm

145 x 145 x 185mm

Color

Beige

Clear

Clear

Tear Strength

3.7kN/m

19.1kN/m

24kN/m

Ultimate Tensile Strength

0.92MPa

3.23MPa

8.9MPa

Skin Contact Compatibility

Makelab's Top Pick Winner

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

Soft Elastic
Flexible Resin
Elastic Resin

Shore Hardness

32A

80A

50A

Elongation at Break

200%

120%

160%

Price

$$$

$$

$$

Lead Times

7 business days

2-7 business days

2-7 business days

Build Volume Size

500 x 250 x 200mm

145 x 145 x 185mm

145 x 145 x 185mm

Color

Beige

Clear

Clear

Tear Strength

3.7kN/m

19.1kN/m

24kN/m

Ultimate Tensile Strength

0.92MPa

3.23MPa

8.9MPa

Skin Contact Compatibility

Makelab's Top Pick Winner

COMPARISON CHART

A quick comparison of similar materials and their main differences

MATERIALS

Castable Wax Resin
STANDARD RESIN
Grey Pro Resin

Ultimate Tensile Strength

11.6MPa

65MPa

61MPa

Elongation at Break

13%

6.2%

13%

Price

$$$

$

$$

Lead Times

2-7 business days

2-7 business days

2-7 business days

Build Volume Size

145 x 145 x 185mm

145 x 145 x 185mm

& 335 x 200 x 300mm

145 x 145 x 185mm

Color

As material, Purple

Gray, black, clear or white.
Custom color on request.

Translucent Grey

Jewelry Cheat Sheet

✅ Great for casting in metals

✅ High surface finish visuals

✅ Great for confirming visual prototypes
