Standard Resin 3D printed part — SLA general purpose material
SLA
General Purpose

Standard Resin

Smooth surface, fine detail. Good for visual prototypes and concept models.

Max build size335 x 200 x 300mm
Tolerances±0.2mm
Lead timeFrom 2 business days
Applications
ProtoProd
01

Material spec

Best surface finish of any material. Ideal for visual prototypes.

SmoothFine detailRigid
Strengths
Best surface finish available
Fine detail resolution
Ideal for visual prototypes
Limitations
Brittle — not for functional loads
UV sensitive over time
Requires post-curing
Colors
WhiteGrayClear
02

Performance profile

Flexible
Rigid
0.0030 GPa10.00 GPa
Textured
Smooth
60 Ra μm1 Ra μm
Low Detail
High Detail
500 μm25 μm
Brittle
Impact Resistant
12 J/m220 J/m
Low Temp
Heat Resistant
41 °C238 °C
Soft
Hard
2890
Small Build
Large Build
145 mm1200 mm
04

Design guidelines

Guidelines

Recommended parameters when designing parts for Standard Resin on SLA.

Wall thickness
0.8mmMinimum recommended wall thickness
Support & overhangs
45°
AlwaysSupport requirements and max overhang angle
Holes
Ø 0.5 mmMinimum hole diameter
Tolerance
±
±0.2mmExpected dimensional accuracy
Minimum features
0.5 mmSmallest printable feature
Clearance
0.125 mmRecommended clearance between parts
05

Post-processing

Standard finishing included with every Standard Resin order on SLA.

Included (standard)

Support removal— Supports carefully clipped and contact points sanded smooth.
IPA washing— Two isopropyl alcohol bath cycles to remove all uncured resin.
UV post-curing— UV curing chamber completes polymerization for final mechanical properties.
Sanding— Support witness marks sanded flush to consistent smooth matte finish.

Optional (quoted separately)

+
Wet sanding— Progressive wet sanding up to 2000 grit for near-polished surfaces.
+
Polishing— Multi-stage polishing for optical clarity on Clear Resin parts.
+
Assembly— Multi-piece builds bonded with structural adhesive. Seams filled and sanded.
+
Painting / priming— Filler primer and automotive-grade paint for presentation models.

View full post-processing details →

06

Shipping & delivery

Every SLA order ships from our production facility in Brooklyn, NY. Lead time starts at From 2 business days. Enter your zip code to see exactly when parts will arrive at your door.

Local Pickup

Same day, free. Brooklyn facility, Mon\u2013Fri 10am\u20135:30pm ET.

Courier

Same day across all five boroughs and northern NJ.

Nationwide Shipping

UPS Ground, 2nd Day Air, and Next Day Air. Tracked and insured.

All shipping options →

Mechanical properties

Tensile Modulus2.2 GPa
Tensile Strength (UTS)47 MPa
Elongation at Break10%
Flexural Modulus2.35 GPa
Flexural Strength90 MPa
Impact Strength (Izod)29 J/m
HardnessShore D 78
Density1.18 g/cm³

Physical & thermal

Heat Deflection (HDT)61°C @ 0.45 MPa
Surface Roughness2 Ra μm
Min Layer Height25 μm
Light TransmissionOpaque
Max Build Dimension145 mm
06

Compare Standard Resin with others

Select up to 3 more materials to compare

Tap materials above to compare with Standard Resin

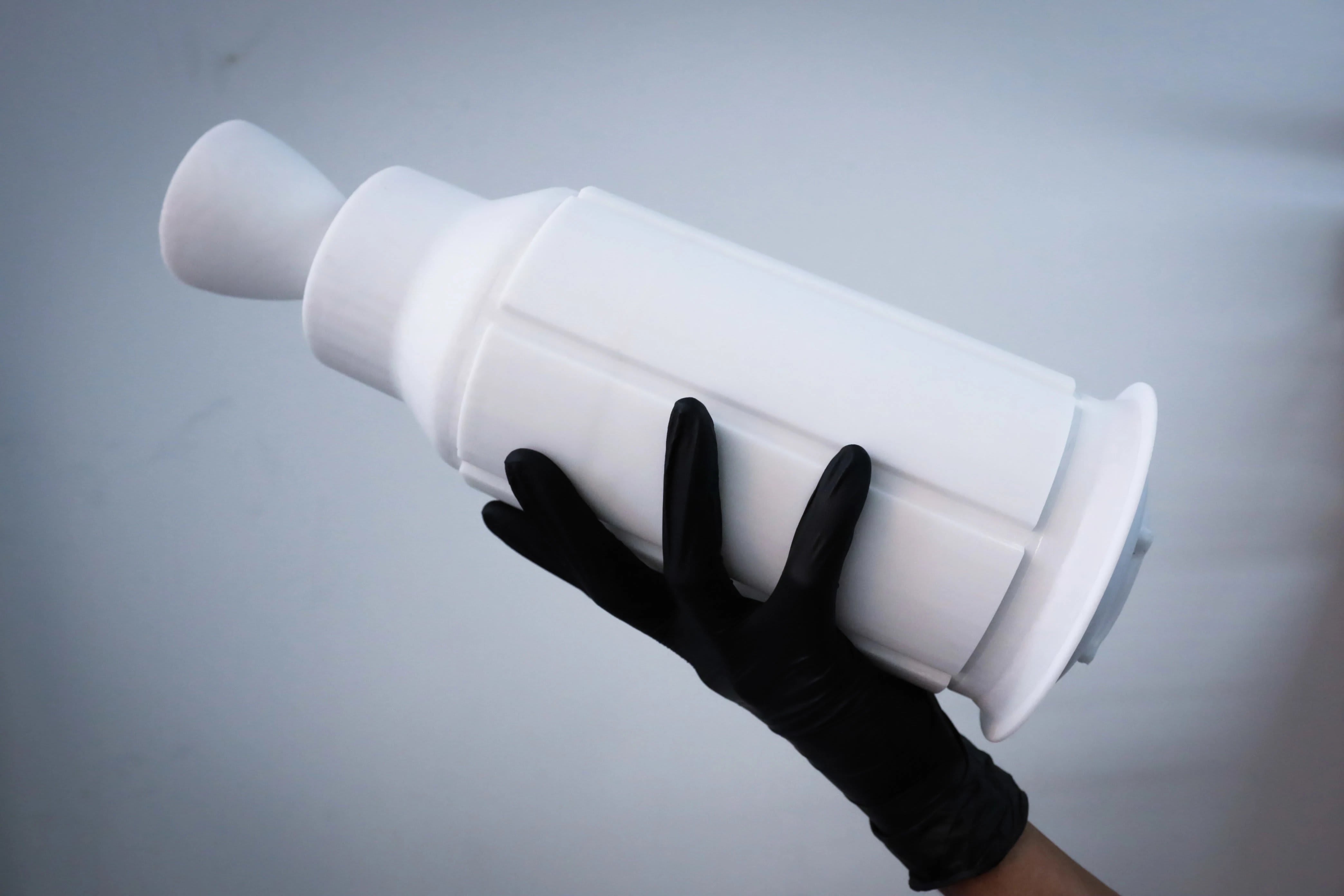

Standard Resin 3D printed part example 1 — SLA technology

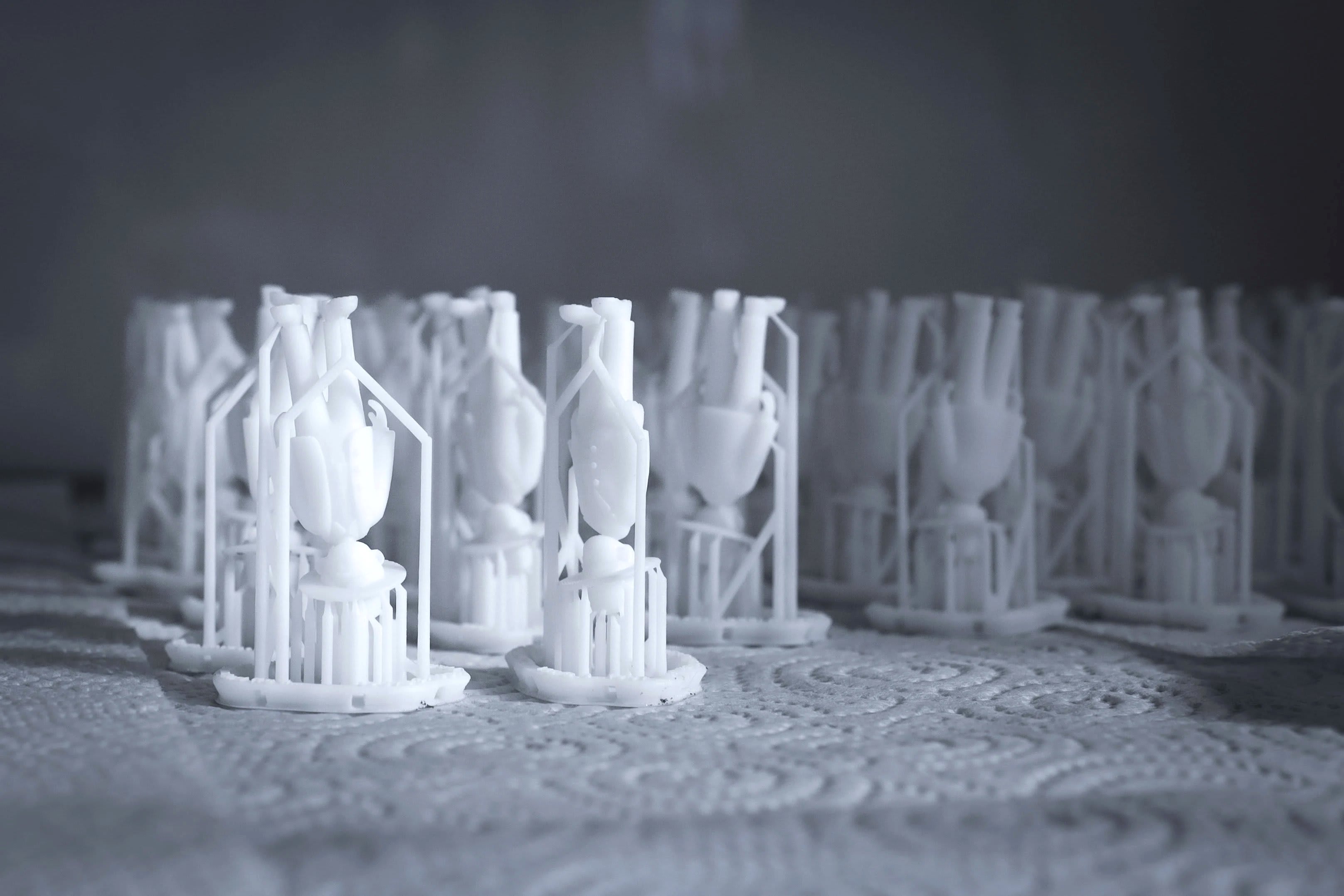

Standard Resin 3D printed part example 2 — SLA technology

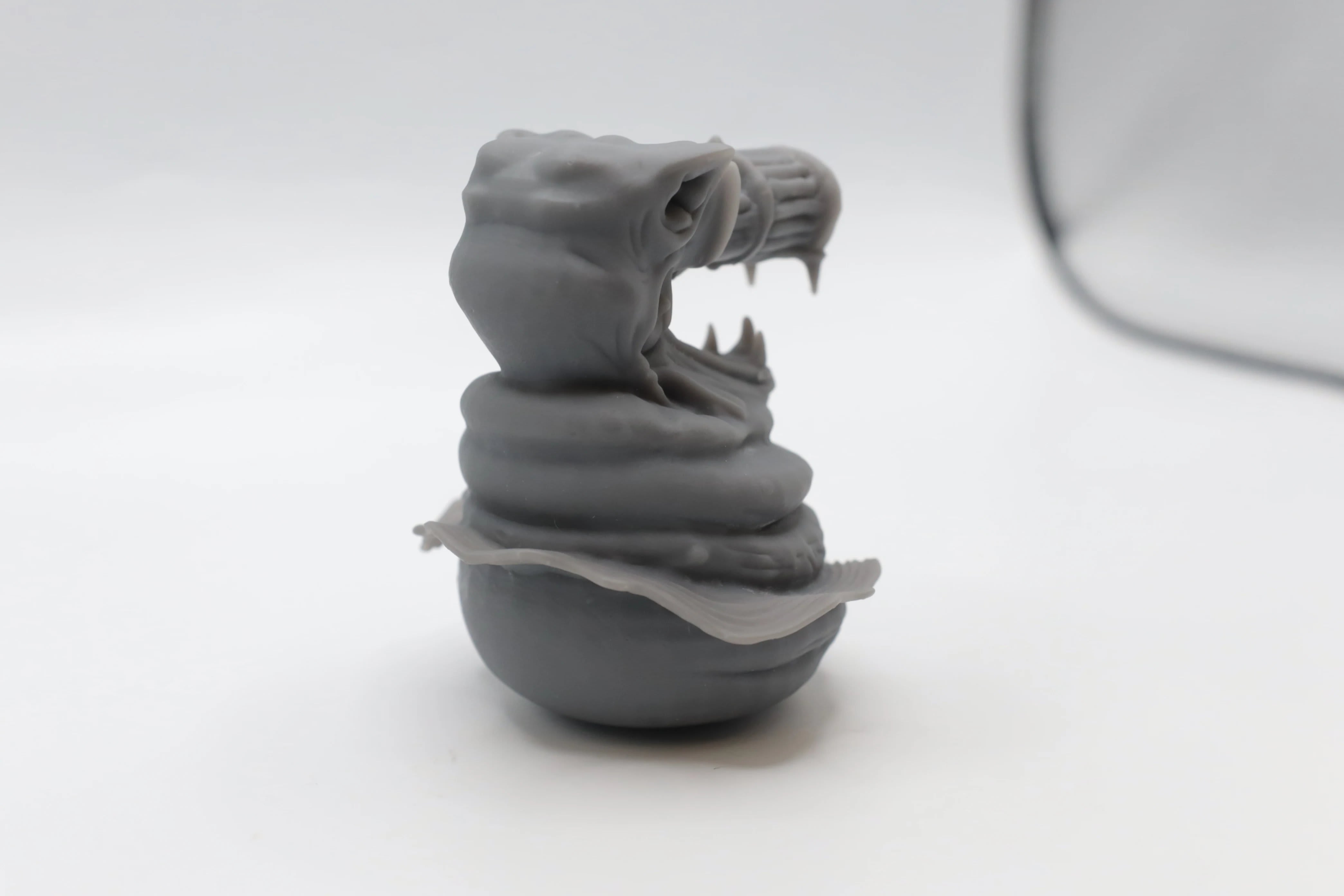

Standard Resin 3D printed part example 3 — SLA technology

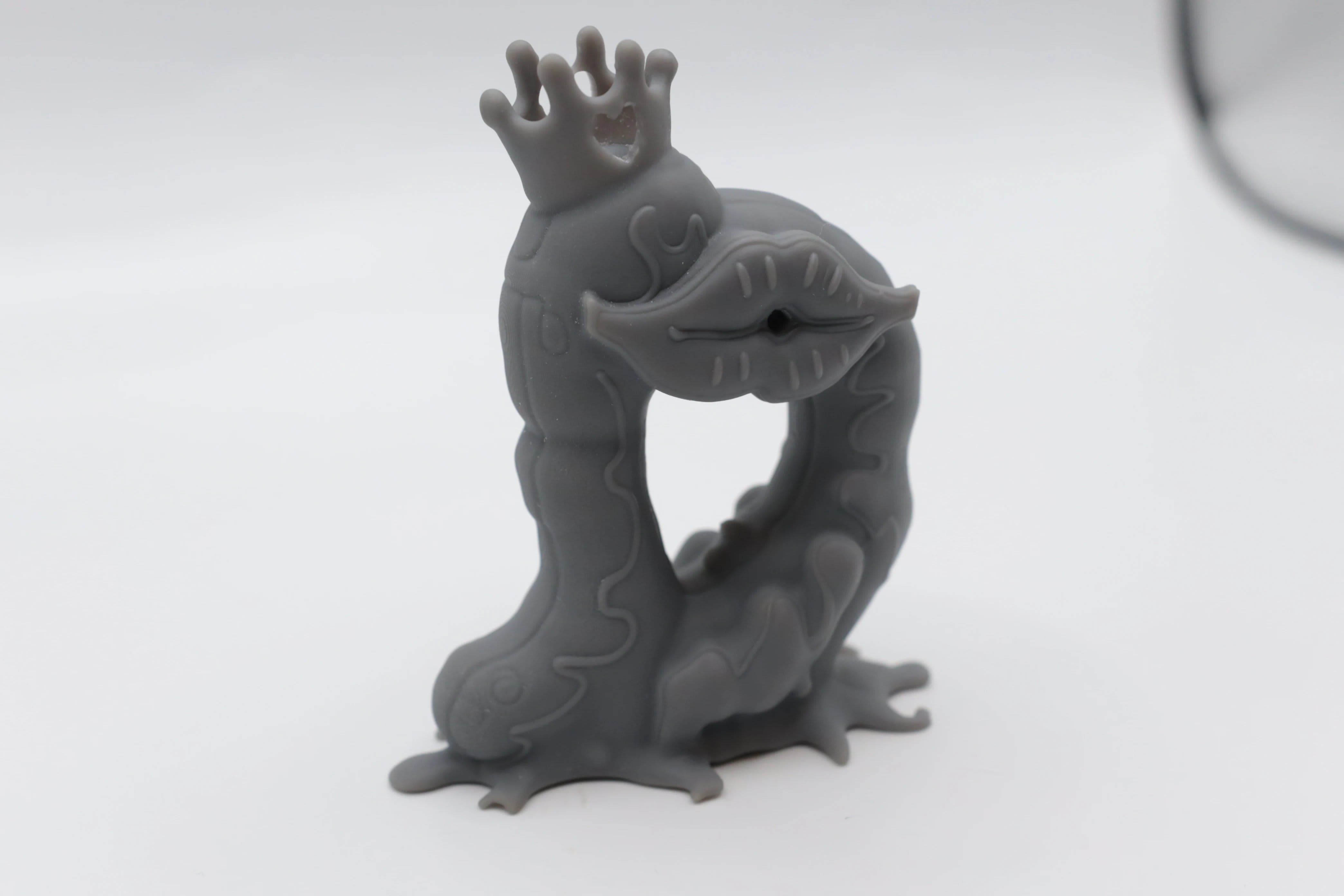

Standard Resin 3D printed part example 4 — SLA technology
Standard Resin 3D printed part example 5 — SLA technology

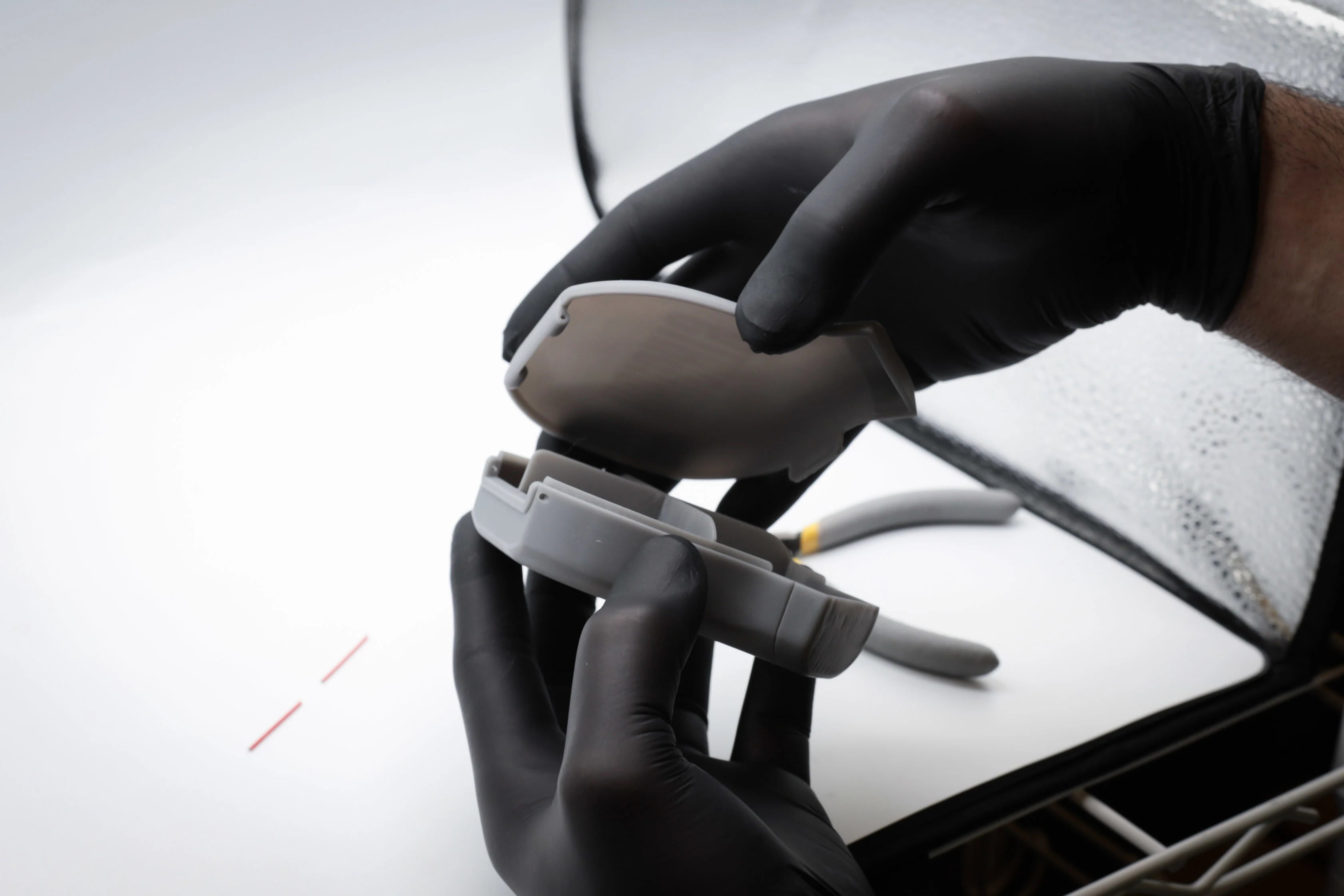

Standard Resin 3D printed part example 6 — SLA technology
