Once SLA parts start getting big, the design considerations change in ways that are easy to underestimate.
What works well at small or mid-scale often behaves differently once parts grow in size and weight. Surface finish and resolution start to matter less, while questions around material stability, structural behavior, transport, and environment move to the forefront. This is usually the moment when teams realize they are no longer just printing a part. They are designing something that has to be moved, installed, supported, cleaned, and live in the real world without warping, sagging, or failing in unexpected ways.
None of these considerations are unique to SLA. They are simply amplified as parts get larger and expectations get higher.
Large-format SLA can absolutely be the right tool. At this scale, success is rarely about the machine itself. It depends much more on how early risks are identified and how deliberately tradeoffs are handled. The projects that move most smoothly tend to be the ones where assumptions are surfaced early and reality is planned for instead of discovered late.
Where Risk Needs to Be Assessed as Parts Get Bigger
As parts increase in size, a few consistent considerations tend to emerge.
Internal stresses behave differently at scale, and gravity becomes a more meaningful design factor. Longer print times mean materials spend more time exposed to heat and environmental variation, which makes early planning around deformation increasingly important. None of this is inherently limiting, but it does raise the importance of upfront engineering decisions.
Tolerances also become more challenging to manage across long spans. Small deviations that would never raise concern on a smaller part can compound into visible alignment or flatness issues. Time spent in the chamber matters more than many teams expect, and prolonged heat exposure is another factor that benefits from early attention.
When issues surface late at this size, the cost of correction rises quickly. Scrap is more expensive, reprints take longer, and iteration becomes slower and less forgiving. This is often where teams recognize that a bit more engineering effort upfront would have simplified downstream decisions.

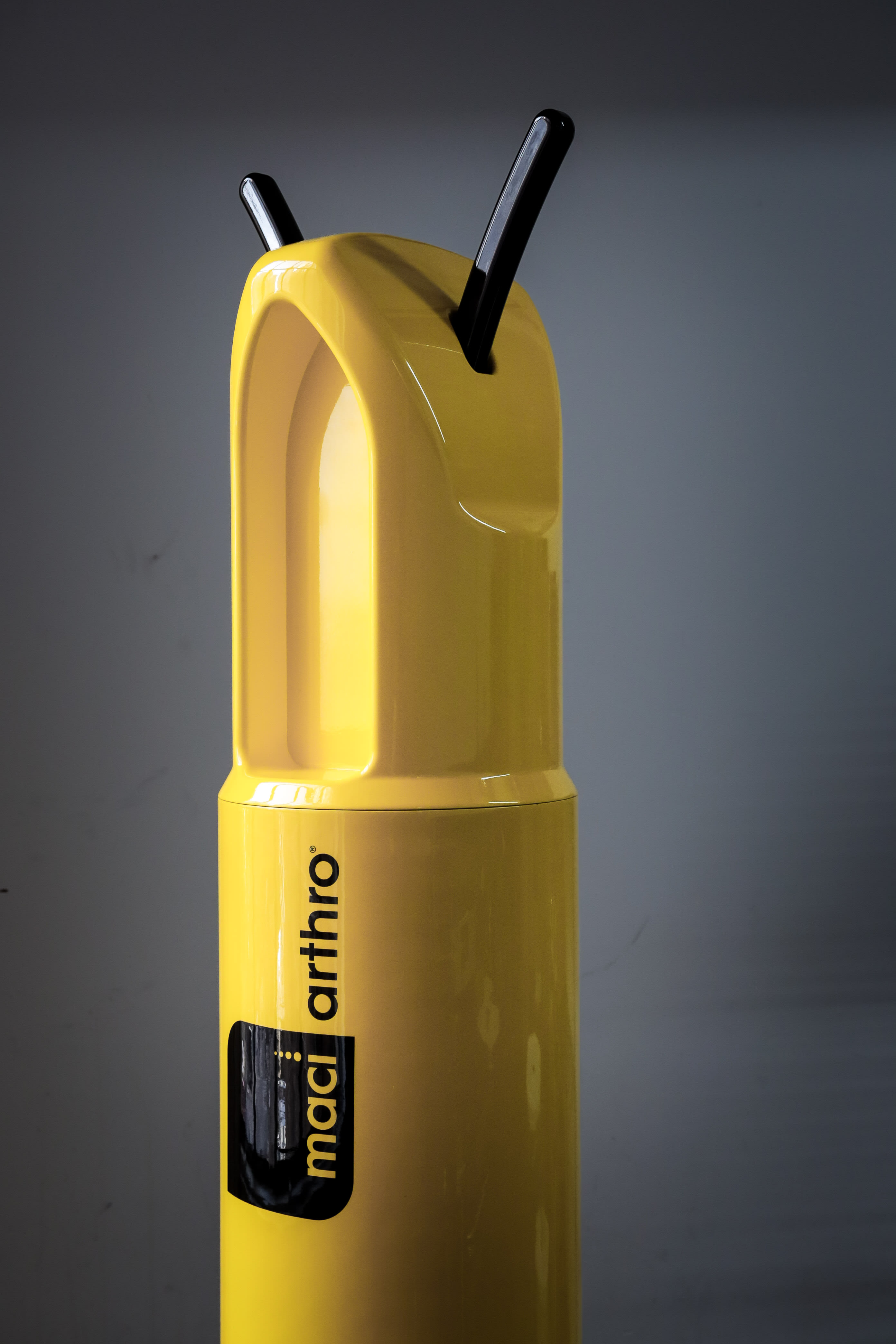

![Industrial SLA printed parts](https://imagedelivery.net/_b-GGY1-wAD4kOMdqDR7IQ/editorial-calendar_shoot-photos_10494--7-img_2683/format=auto,quality=auto,w=1600
Material Stability Is a Risk-Assessment Question, Not an Aesthetic One
At larger scales, material choice shifts from being appearance-driven to being planning-driven. Engineers need to understand how a part will behave not just when it comes off the printer, but after post-processing and throughout its intended use. Temperature changes, sustained loads, repeated handling, and cleaning cycles all influence long-term performance, often in ways that are easier to address early than to correct later.
Strength and durability are not interchangeable. A material that feels rigid at first may still creep, fatigue, or deform under constant stress. These effects become more relevant to account for as parts get larger and heavier, particularly in programs where parts are expected to last longer than originally planned.
This applies across both industrial and creative use cases. Show models, props, and experiential builds often face repeated handling, cleaning, and environmental exposure. Chemical resistance, especially to alcohol-based cleaners, is a common consideration that benefits from being discussed early. In practice, many of the same material stability questions show up regardless of whether a part is functional, aesthetic, or somewhere in between.
Structural Behavior and Proportion Benefit from Intentional Design
As parts scale up, proportion often becomes a primary structural consideration.
Long, thin, or top-heavy geometries introduce bending and stability considerations that may not be obvious in CAD. Tall structures often benefit from intentional load distribution and base planning to ensure they perform as expected under their own weight.
Wall thickness and internal structure are functional design decisions. Thin walls that perform well at smaller sizes may need adjustment when enlarged. Ribbing, transitions, and geometry continuity play a significant role in stiffness and long-term performance, especially for parts that need to be moved or installed.
Support strategy also influences more than surface finish. Placement decisions affect stress distribution and post-processing behavior, and these choices are best evaluated early, before a part is handled, transported, or installed.
Logistics, Handling, and Environment Are Engineering Inputs
For oversized SLA parts, logistics are most effective when treated as part of the design process, not something to resolve at the end.
How a part will be transported should be understood early. Whether it ships by freight truck, in multiple crates, or via local pickup affects both design and planning. Fit through doors, elevators, and loading docks needs to be confirmed upfront, when adjustments are still straightforward.
Weight compounds these considerations. Oversized SLA parts are often very heavy, which influences handling, installation, and safety planning. Equipment access, lift requirements, and on-site conditions are easier to accommodate when they are factored in early.
Environment adds another layer of context. Where the part will live, whether conditions are climate-controlled or variable, and how long the part is expected to remain in use all inform material and structural decisions. In many cases, bases or mounting systems are intentionally engineered to support long-term stability.
When Oversized Industrial SLA Is a Strong Fit
Oversized industrial SLA is particularly well suited for large, complex geometries with high surface or feature requirements. It can be a strong option across automotive, medical, industrial, and experiential programs where execution quality directly impacts perception or decision-making.
Show models and aesthetic builds illustrate this well. When these projects are planned thoughtfully, they tend to move quickly and create meaningful value. When planning is compressed or assumptions go untested, adjustments often need to happen later in the process.
Large-format SLA also makes sense when tooling lead time presents more risk than unit cost, such as for field testing, stakeholder review, or pre-manufacturing validation. In these cases, reducing uncertainty early can be more valuable than optimizing for cost alone.
There are also clear situations where additional planning is required. Extremely high mechanical loads benefit from careful design adaptation. Expectations around injection-molded durability need to be calibrated thoughtfully. Transport, installation, and environmental exposure are all areas where early alignment prevents downstream friction.
Practical Questions That Help Reduce Risk Early
Before committing to oversized SLA, it helps to ground early conversations with a few practical questions.
- What loads, structural or human, will this part experience over its lifetime?
- Where does dimensional stability matter most, and why?
- How will the part be transported, installed, and supported?
- What environments and chemicals will it encounter over time?
- And what tradeoffs are acceptable if everything cannot be optimized?
Bringing It All Together
Oversized industrial SLA is not about pushing machines to their limits. It is about designing for reality, including weight, movement, environment, and long-term use.
In practice, many oversized SLA projects don't begin with a fully defined brief. They start with teams comparing notes, sharing what they've seen before, and pressure-testing assumptions early. Pieces like this are often used to help frame those conversations, whether internally or with external partners. Creating space for that dialogue upfront is often what makes the difference later on.
